By: Structural Access Specialist, 16 Years in Industrial Scaffolding & Petrochemical Construction

Planning & Site Assessment for Refinery Turnarounds

In my 16 years erecting access solutions inside live refineries, I have learned that the planning phase dictates 80% of a project’s success. Unlike commercial construction, a refinery piping system operates at extreme temperatures and pressures, requiring a scaffold that accommodates both the physical structure and the thermal expansion of the pipes. Before a single tube is laid, we conduct a physical walk-down with the client¡¯s piping engineer to identify “critical lifts” and access points for insulation crews.

We typically record surface temperatures of adjacent lines during the survey; I have seen surfaces hit 200¡ãF (93¡ãC) even when the line is supposedly “cold.” This data influences whether we use standard galvanized steel or require heat-resistant barrier netting. Furthermore, we must map out the location of existing cable trays and instrumentation lines, as a misplaced standard can crush a $50,000 sensor. The goal is to create a scaffold that does not interfere with the live process units operating nearby.

One of the most critical decisions involves selecting the scaffold type. For piping installation, system scaffolds (like Cuplock or Ringlock) are superior to traditional tube and clamp because they offer faster erection times and a more secure connection. However, for tight spots around vertical vessels or heat exchangers, we often rely on tube and clamp for its infinite adjustability. We usually schedule the scaffold erection to coincide with the insulation crew’s availability to avoid double-handling of materials.

• Conduct a thermal imaging survey to identify hot lines.
• Verify the location of all buried or overhead utilities.
• Determine the weight of the insulation material (mineral wool vs. calcium silicate).
• Establish exclusion zones for crane operations adjacent to the scaffold.

Load Calculations and Design Specifications

Load calculation is where engineering meets reality. For refinery work, we rarely use the standard “light duty” classification; we typically design for heavy duty (75 psf) or special heavy duty (100 psf) because insulation workers often stage multiple bags of material on the platforms. In a recent 2023 turnaround, we used a 125 psf design to support a 4-inch thick calcium silicate insulation system on a 36-inch diameter line, which allowed workers to stack materials without exceeding the safe working load.

The lateral stability of the scaffold is paramount in a refinery environment where wind loads can be severe. We always calculate wind loads based on the API 4F specification for structures in petrochemical facilities. This often means adding additional ties to the pipe rack structure every 20 feet, rather than the standard 26 feet used in commercial work. These ties must be installed using beam clamps that do not damage the fireproofing on the structural steel.

I always emphasize to my team that the scaffold must be able to support the dead load (the scaffold itself), the live load (workers and tools), and the environmental load (wind and rain). We use a 4:1 safety factor for all structural components, as recommended by the OSHA 1926.451 standards. This ensures that even if a worker accidentally drops a heavy pipe fitting, the scaffold remains intact and stable.

Here is a quick reference table I use to explain load requirements to project managers:

Installation Methods for Piping and Insulation Access

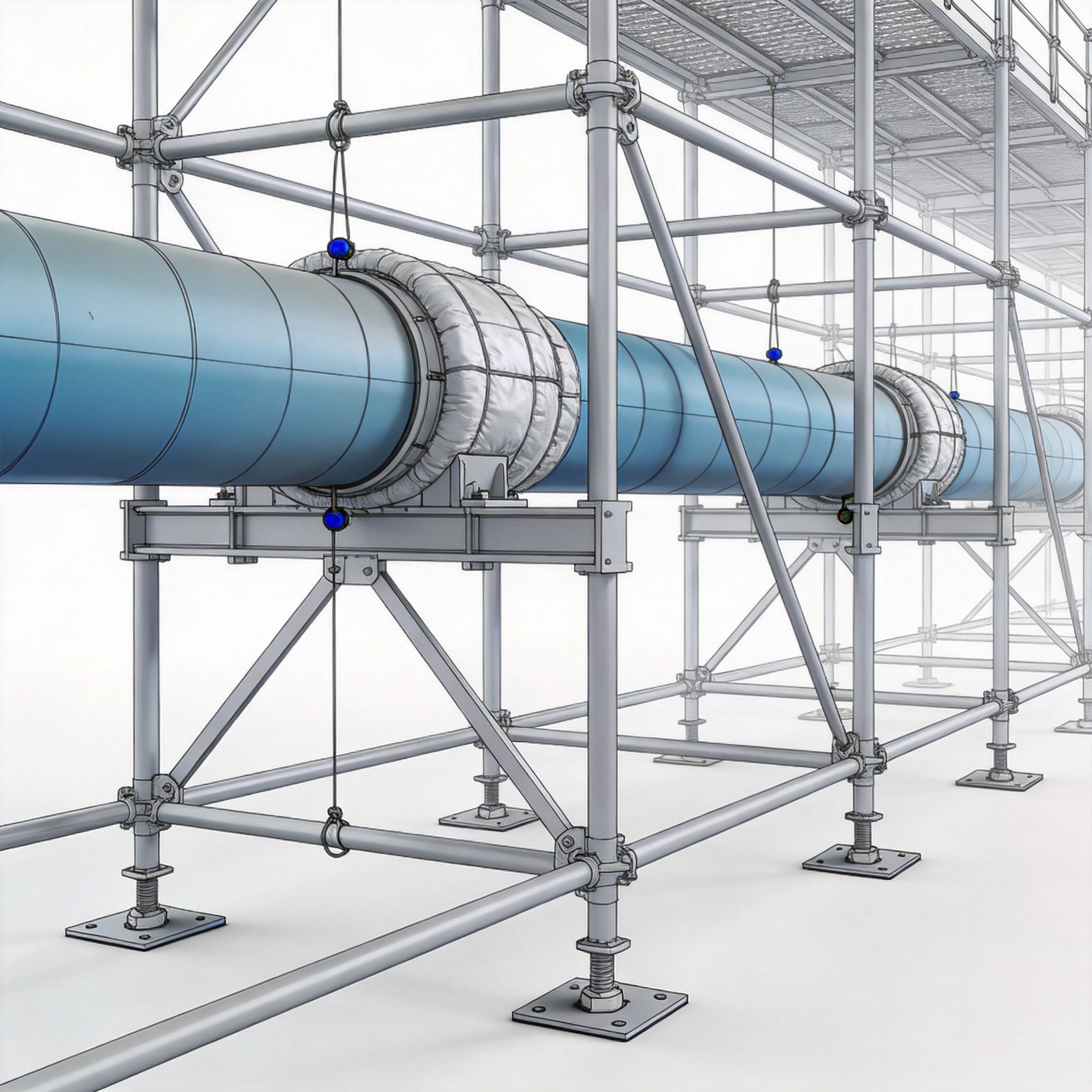

When installing scaffolding specifically for insulation work, the key is to provide a continuous work platform that runs parallel to the pipe run. We typically set the platform deck level with the centerline of the pipe, or slightly below, to allow workers to reach the top of the insulation jacket without stretching. For a typical 12-inch pipe, we use a 5-foot-wide platform, but for larger bore pipes (24-inch or more), we expand to a 7-foot-wide platform to accommodate the workers and their material carts.

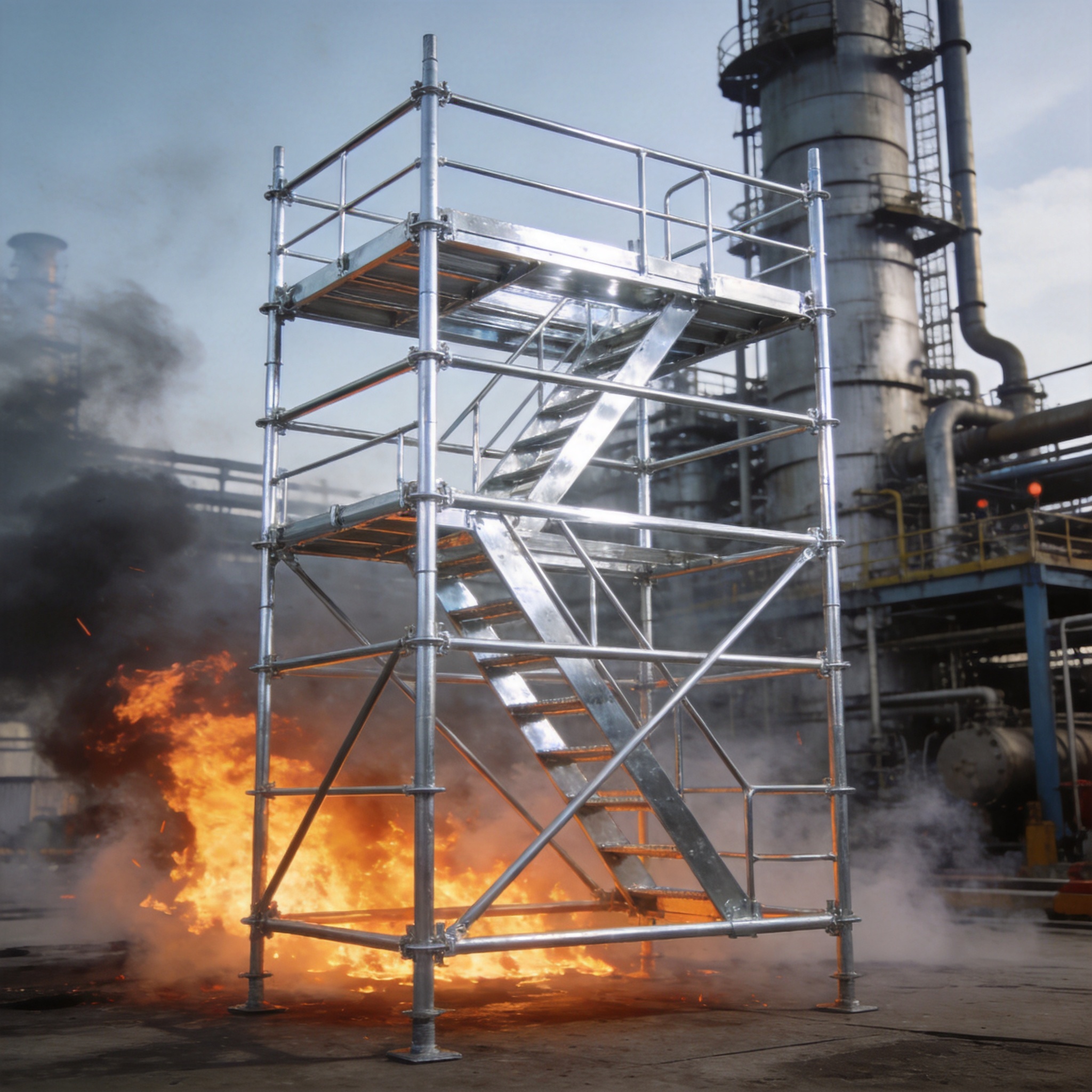

The installation sequence is critical to avoid rework. We always install the scaffold “inside-out” from the pipe rack, meaning we set the inner standards first and work outward. This allows the scaffold to be tied to the rack steel as we progress, rather than trying to tie it off at the end. For vertical risers, we use a “stair tower” access instead of ladders whenever possible, as it increases crew productivity by 30% because workers can carry tools and materials up safely with both hands. In many cases, we utilize a heavy-duty galvanized steel scaffold tower for these vertical access points, as it provides superior stability and load-bearing capacity for the demanding conditions of refinery work.

Insulation work requires specific scaffold accessories that are often overlooked. We install pipe support brackets on the scaffold standards to allow the insulation materials to be stored vertically, preventing them from getting wet or crushed. Additionally, we use bolt-together guardrails rather than pin-lock rails, as they are less likely to be knocked off when workers are maneuvering large sheets of metal cladding. All platforms must be fully planked with no gaps, per NIOSH recommendations for fall protection, to prevent tools from falling onto workers below. For the decking itself, we often rely on aluminum planks for scaffolding due to their lightweight nature and corrosion resistance, which is essential in the humid and chemical-laden atmosphere of a refinery.

For the actual piping installation (fit-up and welding), the scaffold must be erected to support the weight of the pipe and the welding machine. We often install “needle beams” that extend beyond the standard scaffold to support chain falls for lifting pipe sections into place. This eliminates the need for a mobile crane for small lifts, saving the client significant rental costs. In one project, this technique saved our client 40% on crane rental fees over a 6-week period. When we need additional reach or a stable base for these operations, we incorporate a multi-use scaffold outrigger with wheel to provide extra support and mobility without compromising the structural integrity of the main scaffold system.

• Use stair towers for vertical access to improve safety and efficiency.
• Install guardrails on all open sides, regardless of height.
• Use “hop-up” brackets for secondary platforms on vertical vessels.
• Coordinate with NDT (Non-Destructive Testing) teams to ensure scaffold does not block X-ray paths.

Safety Compliance, Inspections, and Case Study

Safety compliance in a refinery is non-negotiable, and it goes beyond basic OSHA rules. We follow the National Safety Council guidelines for “Hot Work” and “Work at Height” permits. Before any scaffold is handed over to the piping crew, it must pass a rigorous inspection by a competent person. I personally inspect every scaffold I sign off on, checking the torque on all wedges and the condition of the base plates on the foundation.

In 2022, I managed a scaffold project for a major refinery in Texas where we erected 250,000 cubic feet of scaffolding for a pipe replacement project. We completed the erection in 14 days, two days ahead of schedule, by using a pre-assembled modular system. However, the real test came during the inspection phase. A third-party auditor found a potential issue with the tie spacing on a 100-foot-tall tower. We immediately halted work, installed additional ties, and passed the re-inspection within 4 hours. This quick action prevented a potential catastrophic failure.

A key lesson from that project was the importance of daily inspections. We created a digital checklist that required the scaffold foreman to photograph the base, the ties, and the decking every morning before work began. This transparency built trust with the client’s safety department and reduced the number of stop-work orders issued. We also implemented a “tagging” system where each lift had a green (safe), yellow (caution), or red (unsafe) tag, updated daily. For the base of our taller structures, we found that using a custom color heavy-duty steel H-frame scaffolding system provided the robust foundation needed to maintain stability and safety throughout the project’s duration.

Refineries are high-risk environments, and the scaffolding is often the only thing standing between a worker and a fatal fall. I recommend that all project managers read the American Concrete Institute (ACI) guidelines on formwork and shoring, as they provide excellent principles on load distribution that apply to scaffolding. Remember, the cheapest scaffold is not the one with the lowest rental price, but the one that is erected safely, inspected regularly, and allows your crew to work productively without incident.

Finally, always ensure that the scaffold dismantling process is as carefully planned as the erection. We use a “reverse sequence” plan to remove the scaffold, ensuring that the structure remains stable until the very last lift. This prevents the “domino effect” collapse that occurs when workers remove bottom standards first. By following these principles, you can ensure that your refinery piping and insulation project is completed safely, on time, and within budget.
