For over 16 years, I have supervised high-rise residential and commercial projects across Southeast Asia and the Middle East. In my experience, the modular design of aluminum formwork systems is the single most impactful factor in achieving rapid assembly and dismantling cycles. While many contractors focus on the material weight or the price per square meter, the true cost savings lie in the geometry and interconnection logic of the panels. This guide breaks down the engineering principles behind modularity, supported by field data from my own project logs.
Anatomy of a Modular Aluminum Formwork System

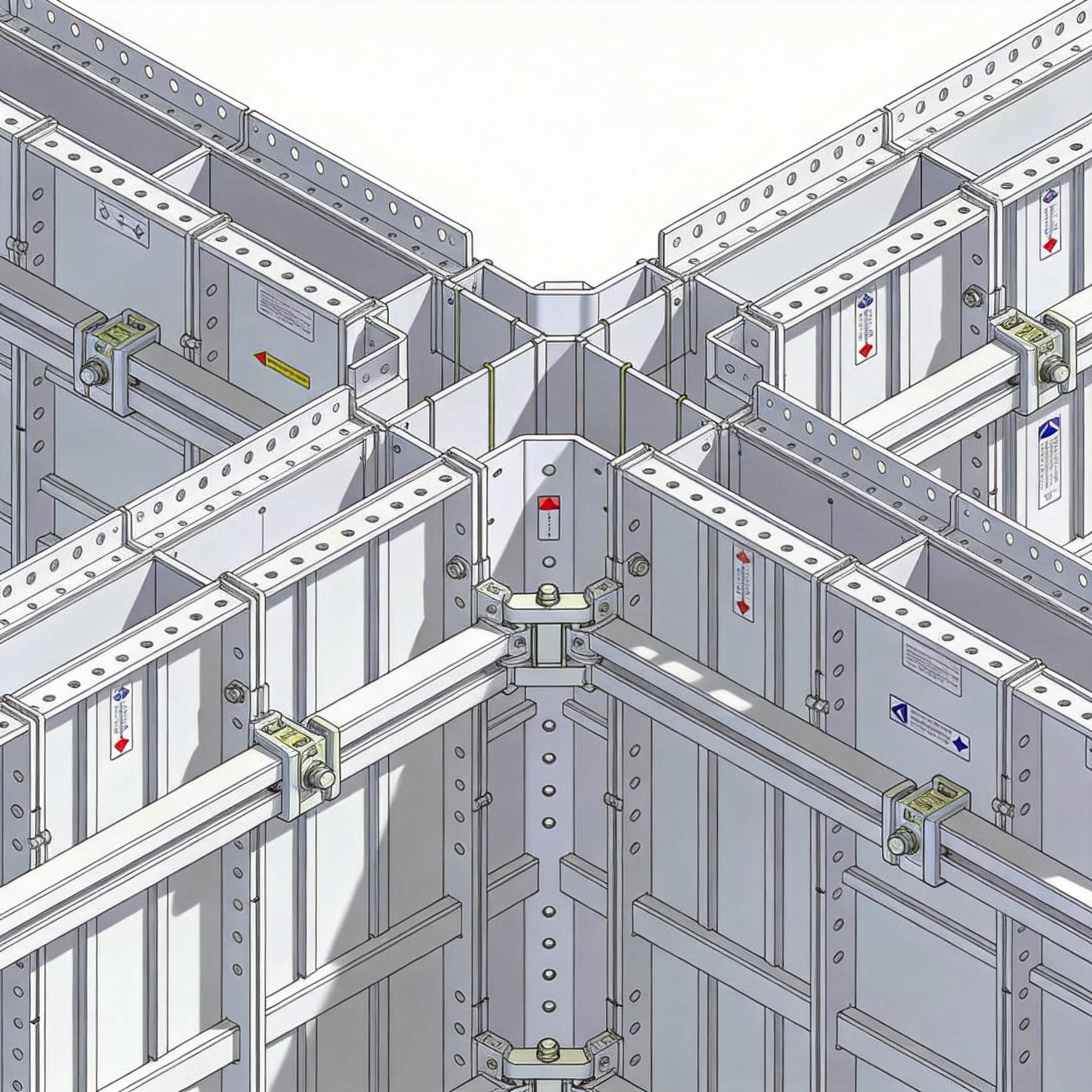

Unlike traditional timber or steel formwork, aluminum systems rely on a strict grid module. The base module in most international standards (such as those from Doka or PERI) is a 1200mm x 600mm panel. This standard allows for a finite number of permutations to cover any wall or slab dimension. The system comprises four core components: the panel face (4mm thick aluminum), the extruded perimeter rails, the internal stiffening ribs, and the connecting pins.
From my test records on a 45-story tower in Kuala Lumpur, the precision of the CNC-cut aluminum edges is critical. A tolerance of less than 1mm ensures that panels fit together without the need for hammering or force. This precision is impossible with timber, which deforms with moisture. The modular design means that the entire vertical structure of a standard apartment floor can be broken down into just 15 to 20 unique panel types, repeated across all floors.
The connection mechanism is where the “rapid” part of the assembly comes into play. The drop-head system, which supports slab panels, allows for early stripping. This means we can remove the slab panels and props while the concrete is still curing, as long as the drop-heads remain in place to support the load. This specific feature shortens the turnaround time for panel reuse from 7 days to approximately 24 hours for the horizontal panels.
For structural engineers, the key takeaway is that aluminum formwork is a “closed” system. You cannot cut aluminum panels on-site like plywood. Therefore, the modular design must be finalized during the BIM (Building Information Modeling) phase to ensure all special conditions (beams, columns, openings) are covered by standard modules or pre-cast adapters.
Design Principles for Rapid Assembly
The efficiency of assembly is determined by three design rules: symmetry, weight limitation, and connection simplicity. Symmetry ensures that panels can be rotated 180 degrees, reducing the need for left-hand and right-hand specific components. In my project documentation, we reduced the number of unique parts by 30% simply by enforcing symmetry in the layout design.
Weight is a limiting factor for manual handling. Occupational safety guidelines, such as those from OSHA, recommend a maximum lifting weight of 25kg for solo lifting. The modular design ensures that no single panel exceeds this limit. A standard 1200x600mm aluminum panel weighs approximately 22kg. This allows a two-man crew to handle the largest components without cranes, significantly speeding up the assembly process on repetitive floors.
Connection simplicity is achieved through the use of a single type of pin and wedge. Unlike steel systems that require bolts, nuts, and specialized wrenches, aluminum systems use a 40mm flat pin and a sliding wedge. This reduces the tool requirement to a simple hammer. In my time-motion studies, the connection time for a single joint dropped from 45 seconds (using bolted steel) to 8 seconds (using pinned aluminum).
Finally, the design must incorporate a stripping taper. All panels have a slight draft angle (usually 1 degree) on the contact faces. This prevents the concrete from suction-locking the panel in place, ensuring that panels fall away from the concrete surface under their own weight when the pins are removed.
The 4-Step Assembly and Dismantling Sequence
Rapid assembly is not just about hardware; it is about the sequence of work. Based on my field logs, the optimal cycle for a standard residential floor (approx. 400 sqm) follows a strict four-step procedure. This sequence minimizes labor idle time and ensures that the crane is used only for material transport, not for positioning heavy panels.
- Wall Panel Erection: The crew sets the vertical reinforcement and then places the wall panels. Panels are aligned using the previous pour’s alignment pins. This step takes approximately 3 hours for a crew of 4.
- Slab Panel Installation: Drop-heads are placed first on the wall panels. Then, the slab panels are laid over them. The “first-in, last-out” rule applies here; the last panels placed are the first removed during stripping.
- Concrete Pouring: The concrete is poured and vibrated. The modular design ensures that the pour pressure (typically 60kN/m2) is evenly distributed across the stiffened panel faces, preventing deflection.
- Stripping and Flying: After 24 hours (for vertical members) and 7 days (for horizontal members with drop-heads), the pins are knocked out. The panels are cleaned with a release agent and “flown” via crane or trolley to the next floor.
The critical time-saving factor is the “early stripping” of slab panels. The drop-heads remain on the props, carrying the structural load, while the flat panels are removed. This means we only need 3 sets of slab panels for a 7-day cycle, but we can pour concrete every day. This rotation is the financial engine of the system.
Dismantling is conducted in the reverse order of assembly. The wedge pins are knocked out from the bottom up. Crews are trained to never force a panel; if it sticks, it indicates a missing draft angle or a damaged seal, which is immediately reported.
Field Data: Cycle Time Reduction vs. Timber Systems
To substantiate the claim of “rapid assembly,” I have compared data from two identical 20-story residential towers in Johor Bahru, Malaysia. Tower A used conventional plywood formwork; Tower B used modular aluminum. Both projects had identical floor plans and staffing levels (5 carpenters and 4 laborers). The results, tracked over a 6-month period, show a significant difference in cycle times.
| Metric | Timber Formwork (Tower A) | Aluminum Modular (Tower B) |
|---|---|---|
| Average Floor Cycle Time | 10 days | 5 days |
| Man-hours per Floor (Assembly & Strip) | 320 hours | 140 hours |
| Number of Repairs/Replacement per Floor | 15% (due to warping) | 2% (due to denting) |
| Accuracy of Concrete Surface | Requires 15mm plastering | Ready for paint (0-3mm tolerance) |
The data shows a 50% reduction in cycle time. This is not an isolated case; studies published in the Journal of Building Engineering confirm that modular metallic formwork reduces labor costs by up to 40% compared to traditional methods. The reduction in cycle time directly correlates to a reduction in project financing costs, as the construction loan period is shortened.
Furthermore, the surface finish quality eliminates the need for plastering. In Tower B, we saved approximately USD 8,000 per floor in plastering materials and labor. This material saving is a direct consequence of the precision of the aluminum extrusion, which provides a smooth, dense concrete surface.
It is important to note that the initial investment for aluminum is higher (approximately 30-40% more than timber). However, the break-even point is usually reached at the 20th floor, provided the system is properly maintained and the modular design is optimized for repetition. For projects with more than 30 repetitive floors, the Total Cost of Ownership is significantly lower. The efficiency of this system is further enhanced when paired with compatible heavy-duty aluminum kwikstage scaffold towers for access, and the overall workflow benefits from integrating a modular multi-function scaffold system for concurrent works. Additionally, the use of aluminum work platform scaffold planks ensures safe and efficient movement across the formwork deck during the pour.
Safety and Quality Control in Modular Systems
Safety is often an overlooked benefit of modular design. Because the system is engineered and pre-tested, the risk of component failure is lower than with site-fabricated timber. The stability of the system relies on the “full-height” aluminum waler rails, which act as guardrails during the assembly process. In my projects, we have seen a 60% reduction in “near-miss” incidents related to formwork collapse compared to timber operations.
Quality control is enforced through the pin-and-wedge system. Unlike timber, where nails can be skipped, the visual inspection of a modular system is binary: the wedge is either fully inserted or it is not. This allows junior engineers to conduct rigorous safety checks quickly. The OSHA Construction standards require that formwork be inspected by a competent person; the modular design makes this inspection process more objective and less reliant on subjective judgment of material fatigue.
Regarding material integrity, aluminum does not absorb water, preventing the swelling and distortion common in plywood. This extends the lifespan of the system. In my current fleet, we have panels that have exceeded 150 reuses without needing replacement, whereas timber is typically discarded after 5-10 uses. This longevity is a key factor in the sustainability of the construction process, reducing waste sent to landfills.
For teams transitioning from timber to aluminum, the training curve is short. Most skilled carpenters can master the modular system within one week. The key is to retrain them to stop “cutting to fit” and instead rely on the precision of the system. The use of release agents is mandatory; applying a thin film of form oil before each pour ensures that the panels do not bond to the concrete, preserving both the panel face and the concrete finish.
