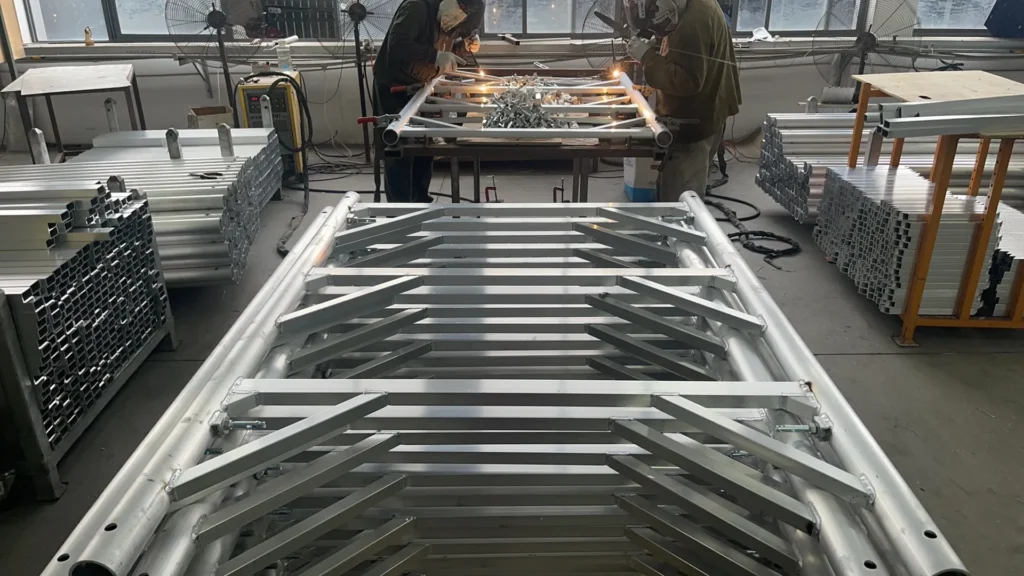

Aluminium Shoring Frame Heavy Duty Frame

Aluminium Shoring Frame (Heavy Duty Frame) is a modular aluminum support system designed for temporary load-bearing during concrete pouring in construction projects.

It offers a combination of high strength, lightweight structure, and fast assembly, making it an efficient alternative to traditional steel shoring systems.

Definition & Application

• Full Name: Heavy Duty Aluminium Shoring Frame (Aluminium Scaffold Shoring Tower)
• Main Applications:
  • Concrete slab and beam support
  • Bridge construction
  • Tunnel engineering
  • Heavy-duty temporary structural support
• Key Advantage:
  Replaces traditional steel shoring systems, reducing weight by approximately 60%, allowing single-worker handling and installation
• Material:
  Aerospace-grade 6061-T6 aluminum alloy, featuring high strength, corrosion resistance, and reusability

Key Specifications

Single Leg Load Capacity:
10K–25K (approx. 45–111 kN / 4.5–11 tons)
Tower combination capacity up to 40K (18 tons)

Common Dimensions (W × H):

• 1.2 m × 1.2 m (4′ × 4′)
• 1.2 m × 1.5 m (4′ × 5′)
• 1.2 m × 1.8 m (4′ × 6′)

Unit Weight:
15–25 kg (significantly lighter than steel frames at 50–80 kg)

Safety Standards:
Complies with ANSI A10.9, CAN/CSA S269.11, and other international construction safety standards

System Components

Main Frame:
Vertical load-bearing structure made of welded rectangular aluminum tubes with cross bracing

Base Jack:
Provides height adjustment, leveling, and load distribution

U-Head Jack:
Supports timber or steel beams and transfers load

Cross Brace:
Enhances horizontal stability and prevents overturning

Wedge Pin:
Enables fast locking without bolts for efficient assembly

Core Advantages

Lightweight & High Strength:
Comparable strength to steel, but only 1/3 of the weight, reducing labor by up to 70%

Modular Design:
Standardized components allow flexible assembly of 1–20 m shoring towers

Corrosion Resistance:
Anodized aluminum surface prevents rust, ideal for wet or outdoor environments

Fast Assembly:
Tool-free wedge locking system allows single-worker installation within 3–5 minutes

Safe & Stable:
Double diagonal bracing and a wide base design ensure stability with a 2.5:1 safety factor

Typical Applications

• High formwork support for building slabs and beams
• Bridge box girder and cap beam construction
• Tunnel secondary lining support
• Industrial platforms and heavy equipment base support

Comparison with Steel Shoring

Purchasing Guidelines

Material Certification:
Ensure use of 6061-T6 aerospace-grade aluminum, and avoid recycled materials

Load Selection:
Choose 10K / 16K / 25K models based on project load requirements

Welding Quality:
Full welding with no cracks or porosity; reinforced stress points are essential

FAQ – Aluminium Shoring Frame Heavy Duty Frame

1. What is the main advantage of steel shoring frames?

The aluminium frame is significantly lighter (about 60% weight reduction) while maintaining high strength, allowing faster installation and lower labor costs.

2. Can one person install the system?

Yes, the lightweight design and wedge pin locking system allow a single worker to assemble it quickly without tools.

3. Is it suitable for outdoor and wet environments?

Yes. The anodized aluminum surface is corrosion-resistant and does not rust, making it ideal for outdoor use.

4. What load capacity should I choose?

Select 10K, 16K, or 25K models depending on the concrete load and structural requirements of your project.

5. How high can the shoring tower be built?

Using modular components, towers can be assembled from 1 meter up to 20 meters, depending on project needs.

6. Does it meet international safety standards?

Yes, it complies with ANSI A10.9 and CAN/CSA S269.11, ensuring high safety and reliability.

7. What industries typically use this product?

It is widely used in construction, infrastructure projects, bridge engineering, tunnel construction, and industrial plant installations.
